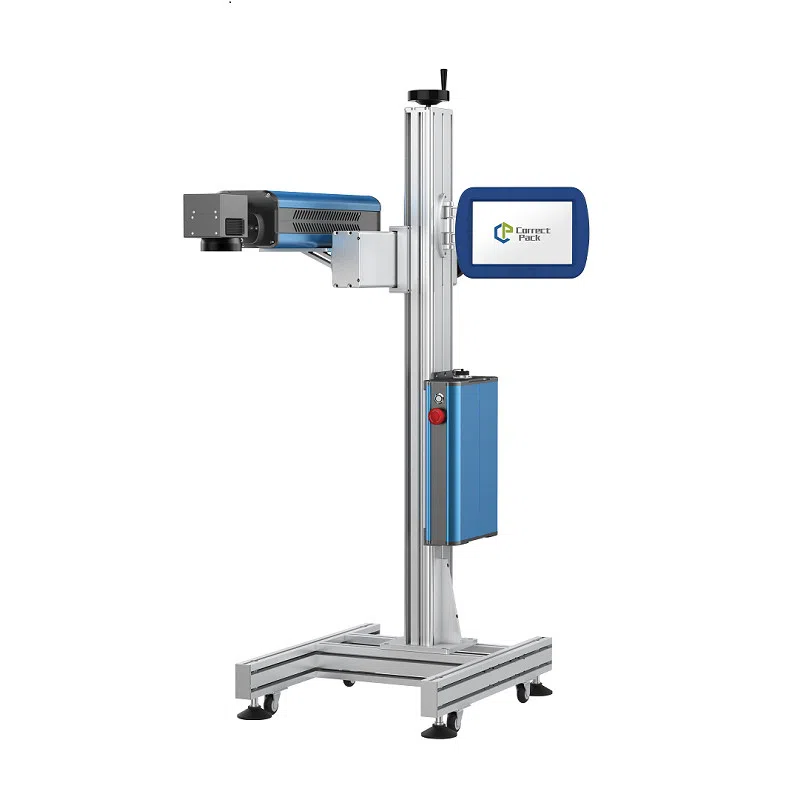

The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
Feature:
1) Compact design and fast installation
2) Easy to be integrated at any position of the production line
3) More further environmental protection and energy saving
4) Un-contact processing, more environmental protection, low er power, fast laser marked and cost economy
Product parameter:
Item Type Model | CP6020C | CP6030C | CP6060C |
Machine material | Aluminum structures+Stainless steel | ||
Laser | CO2 laser generator | ||
Output Power | 20W | 30W | 60W |
Laser wave Length | 10.6μm /10.2μm/9.6μm | 10.6μmm | |
Lens | High precision 2 dimensional scanning system | ||
Marking speed | ≤8000mm/S | ≤1200mm/S | |
Main controller system | Highly integrated main board,Embedded 10.4 inch controller | ||
Cooling system | Air cooled | ||
Focus zoom lens | 130mm double red light focusing | ||
Marking scale type | Raster font, vector font for choosing | ||
Min.line width | 0.03mm | ||
Repeatability accuracy | 0.01mm | ||
Working area | 110×110mm | ||
Positioning | Red light positioning and double red light focusing | ||
Lines of marking | No limited in working area | ||
Speed | 0-200m/min | 0-230m/min | |
Power | 220VA | ||
Power Consumption | 800W | 1200W |
