Uptime advantage of
●The durable laser source, minimal maintenance requirements and low cost.
●Help reduce unplanned and planned downtime.
●Ensure minimal manual intervention during production.
●Practical and reliable operating software further maximizes the utilization rate of the laser coding machine.
●Quickly implements installation settings and production line conversion steps.

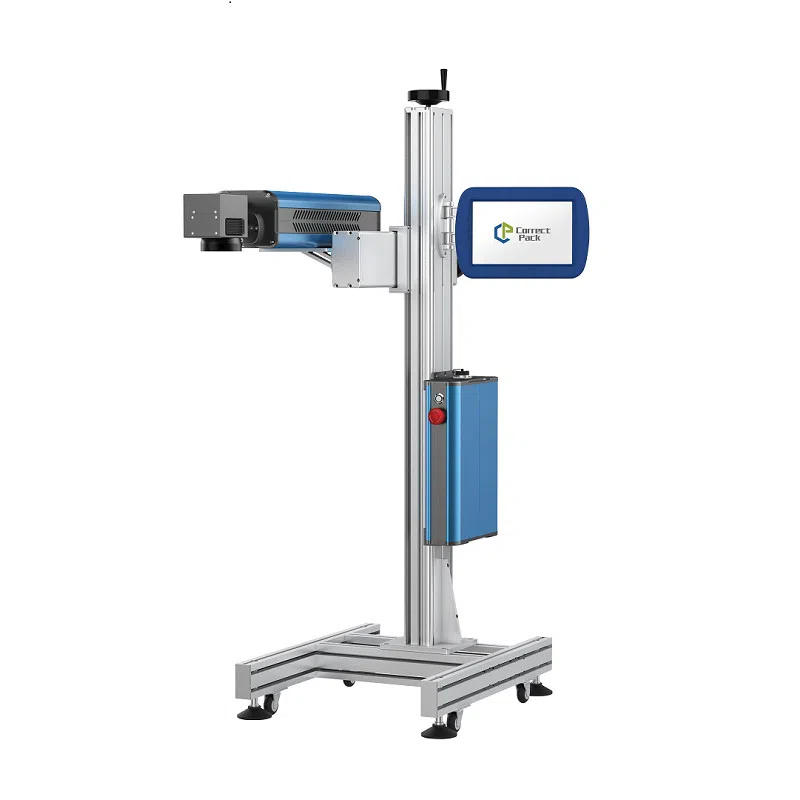

Features of laser fiber marking machine:
1. Compact design, reduce occupied space.
2. Speed up to 8000mm/S.
3. Laser beam quality of metal laser engraver is much better than traditional solid laser marking machine.
4. New design galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast.
5. Humanized design, easy to operate.
Product parameter
Item Type Model | CP6020F | CP6030F | CP6050F |
Machine material | Aluminum structures+Stainless steel | ||
Laser | Fiber laser generator | ||
Output Power | 20W | 30W | 50W |
Laser wave Length | 1064nm | ||
Lens | High precision 2 dimensional scanning system | ||
Marking speed | ≤8000mm/S | ||
Main controller system | Highly integrated mainboard,Embedded 10.4 inch controller | ||
Cooling system | Air cooled | ||
Focus zoom lens | 190mm double red light focusing | ||
Marking scale type | Raster font, vector font for choosing | ||
Min.line width | 0.012mm | ||
Repeatability accuracy | 0.003mm | ||
Working area | 110×110mm | ||
Positioning | Red light positioning and double red light focusing | ||
Lines of marking | No limited in working area | ||
Speed | 0-200m/min | ||
Power | 220VA | ||
Power Consumption | 600W | ||
Service
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support.
* 24 hours on line answer your
* Welcome to view our Factory
* Take video as client's request confusion
After-Sales Service
* We will adjust the machine to fit for your product.before deliver
* We provide useful instructions of machine
* Training how to install the machine, training how to use the machine.
