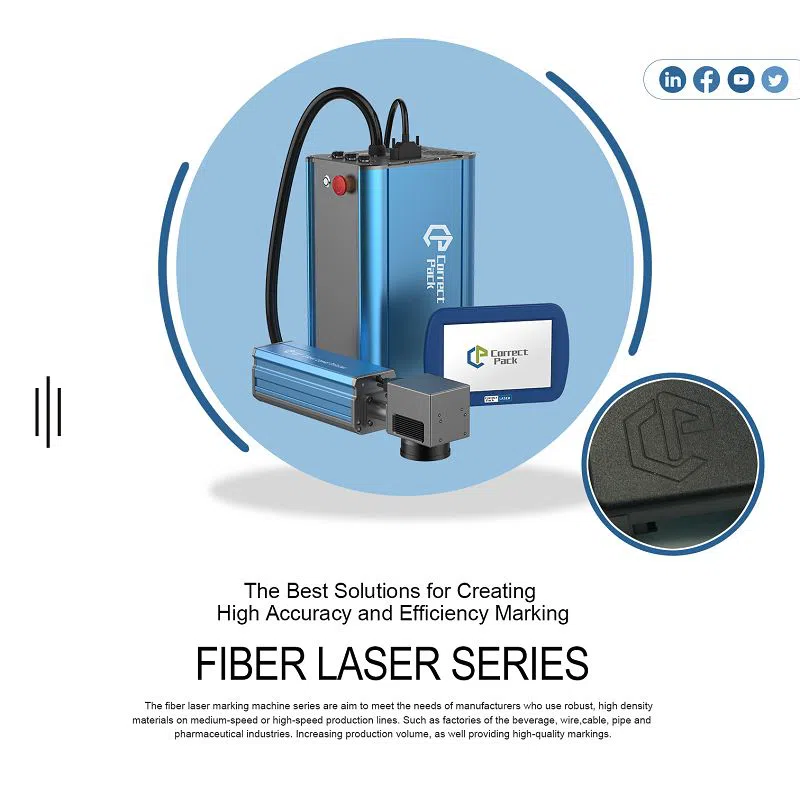

Flying coding laser marking machine
Product Features:
1. Using fiber laser, high electron-optical conversion efficiency, long service life of the equipment, no consumables, and maintenance-free;
2. Using high-speed digital galvanometer, the marking speed is fast and the efficiency is high, up to 600 characters per second;
3. Good beam quality, high reliability, high precision, repeatability up to 0.01mm, small characters up to 0.15mm;
4. Small size, easy to carry, save production space, easy to install and operate;
5. Optional rotating fixture for 360° marking of cylindrical objects.
Item Type Model | CP6020F | CP6030F | CP6050F |
Machine material | Aluminum structures+Stainless steel | ||
Laser | Fiber laser generator | ||
Output Power | 20W | 30W | 50W |
Laser wave Length | 1064nm | ||
Lens | High precision 2 dimensional scanning system | ||
Marking speed | ≤8000mm/S | ||
Main controller system | Highly integrated mainboard,Embedded 10.4 inch controller | ||
Cooling system | Air cooled | ||
Focus zoom lens | 190mm double red light focusing | ||
Marking scale type | Raster font, vector font for choosing | ||
Min.line width | 0.012mm | ||
Repeatability accuracy | 0.003mm | ||
Working area | 110×110mm | ||
Positioning | Red light positioning and double red light focusing | ||
Lines of marking | No limited in working area | ||
Speed | 0-200m/min | ||
Power | 220VA | ||
Power Consumption | 600W | ||
Service
Pre-Sales Service * Inquiry and consulting support * Sample testing support. * 24 hours on line answer your * Welcome to view our Factory * Take video as client's request confusion | After-Sales Service * We will adjust the machine to fit for your product.before deliver * We provide useful instructions of machine * Training how to install the machine, training how to use the machine. |
