China Low Price Purple Laser Marking Machine Suppliers - Wholesale Pricelist

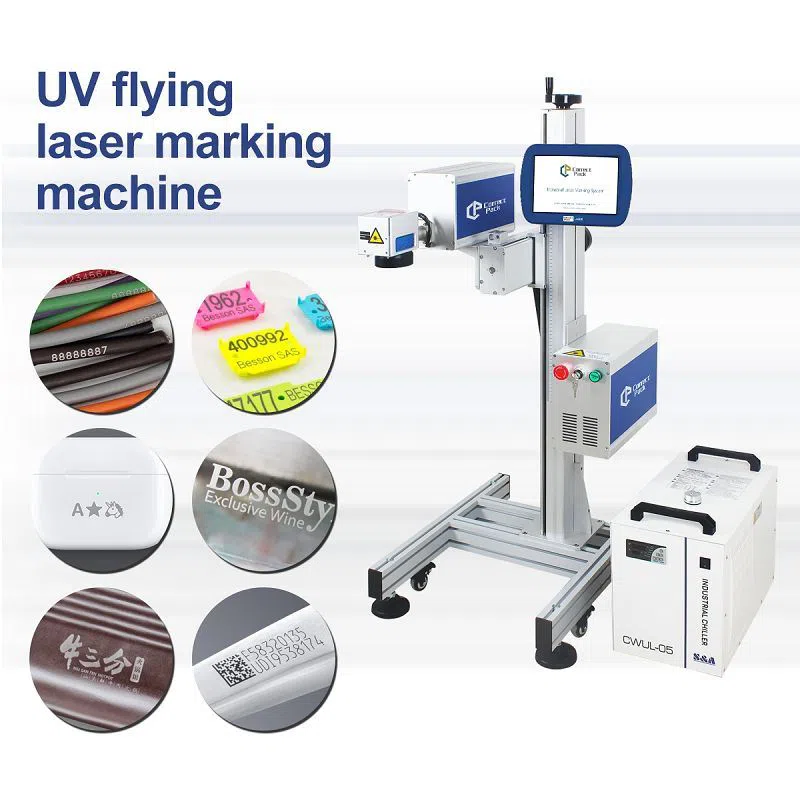

Purple laser marking machine

The operating cost is extremely low, no unplanned shutdown of production is avoided. The equipment can be operated without maintenance for a long time, without the need for maintenance by a dedicated person, without any consumables and zero operating costs

Applicable Industries:

1. Can be a variety of metal, non-metallic materials for processing.Especially for high hardness, high melting point, brittle material marking more obvious advantages.

2. Belongs to the non-contact processing, does not damage the product, no tool wear, marking good quality.

3. The laser beam is fine, the processing material consumption is small, and the processing heat influence area is small.

4. High processing efficiency, the use of computer control, easy to achieve automation.

Parameter

Model series		UV series (JPT laser source)
Model		CP6003U	CP6005U
Laser parameters	Laser source model	JPT	JPT
	Output Power	3W	5W
	Beam quality ㎡	≤1.2
	Laser wavelength	355 nm
	Pulse frequency	20-150 kHz	20-200 kHz		40-300 kHz
	Output beam diameter	0.7±0.1 mm			0.8±0.1 mm
	Output power stability	3%
	Working life	About 20,000 hours
Optical Properties	Marking range	100~300mm (range optional)
	Engraving depth	≤1mm (depending on power and time)
	Engraving speed	≤10000mm/s
	Repeat accuracy	±0.002
	Minimum marking line width	0.1mm
	Minimum character height	0.15mm
Use Environment	Cooling way	Builtin air cooling		External water cooling
	System power supply	500W/220VI 50Hz(110V can be connected)
	Temperature humidity	0~40°,30% RH 85%,air conditioner should be installed when used outside the range
	Oil mist, condensation	Not allowed
Other Parameters	Operating system	Flying marking system
	File format	The software supports text, QR code, barcode, serial number, graphics and other marking content
	Dimensions	660X510X1460 mm
	Packing size	Host:850X510X280mm Water tank:680X430X57mm Column: 135OX350X280mm
	Total Weight	Including cooling water tank about 89kg

Recommended

Correct Pack High quality CO2 Laser Marking Machine in Production Line

For packaging production lines that require high-speed identification and high-quality clear coding, CO2 laser solutions can be used to meet the requirements of maximum output and consistent printing quality. It is an ideal solution for high-speed identification and complex coding in industries such as food, beverage, cosmetics, pharmaceuticals and extruded profiles.

CO2 Flying Laser Marking Machine - Correct Pack

New Design CO2 30w Laser Marking Machine - Correct Pack

Laser Marking Printer CO2 compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market. Correct Pack summarizes the defects of past products, and continuously improves them. The specifications of Laser Marking Printer CO2 can be customized according to your needs.For packaging production lines that require high-speed identification and high-quality clear coding, CO2 laser solutions can be used to meet the requirements of maximum output and consistent printing quality. It is an ideal solution for high-speed identification and complex coding in industries such as food, beverage, cosmetics, pharmaceuticals and extruded profiles.

High Quality HD Printing 60W CO2 Laser Printer - Correct Pack
